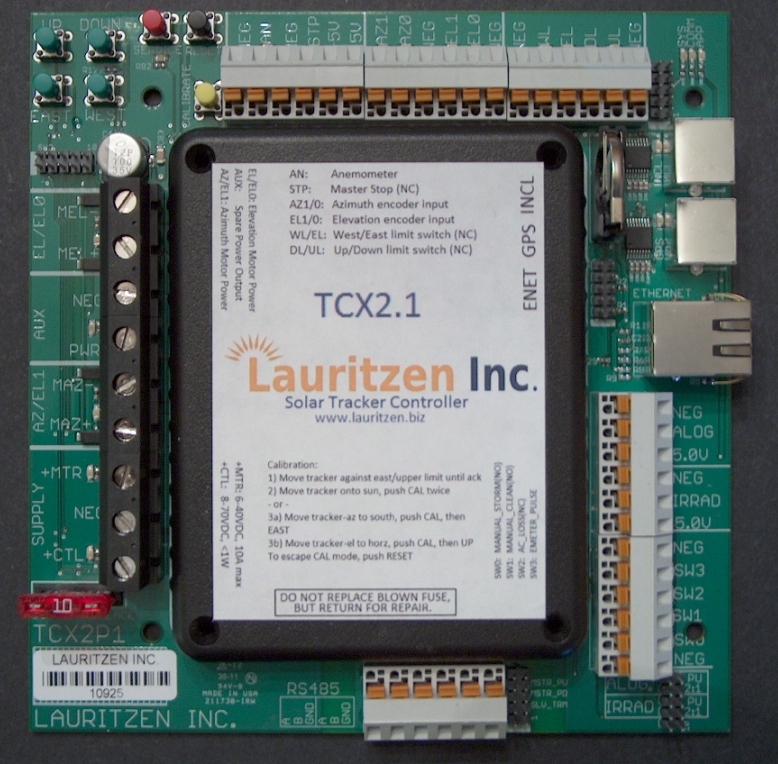

The SCX2™ Stand Alone Controller
The stand-alone solar tracker controller – SCX2™, is designed to operate a single dual-axis or two single-axis solar trackers. It is based on the TCX2™ hardware platform, and packaged with a set of software modules to make it a complete solar tracker controller. It may operate in a field of other SCX2™ managed trackers; however, each unit will operate autonomously. The tracker’s target goal (the Sun’s position) is calculated using the current longitude, latitude and local time-of-day. SCX™ can safely park the solar tracker in storm conditions—reducing losses and recovering the investment made in the control systems from Lauritzen Inc. The iPhone App (Heimdal) can also be used for remote control.
Features:
- Option to connect external precision inclinometer for elevation control.
- Many safety features for motors including Dual H-Bridge DC motor drivers, and built-in motor current sensing—prevents current spikes, extending life motor life
- Built-in support for single and dual channel encoders as well as limit switches per motor
- Built-in support for emergency stop
- 24V DC systems for motor and controls, with wide input supply voltage range (6-40V DC)
- Remote monitor, control, re-program, and upgrade via the network—preserves investment in infrastructure
- Calculates Solar Position using NREL’s published ephemeral equation.
- System management, including remote software updates, parameters for motor operation and range limits.
- System monitoring such as operational details and fault analysis.
- Remote control via an iPhone App.
